Base Machine
- Simple machine control
- Motor driven hopper track assembly
- Pressure-sensitive compensation for thickness tolerances
- Modular welded "C" frame

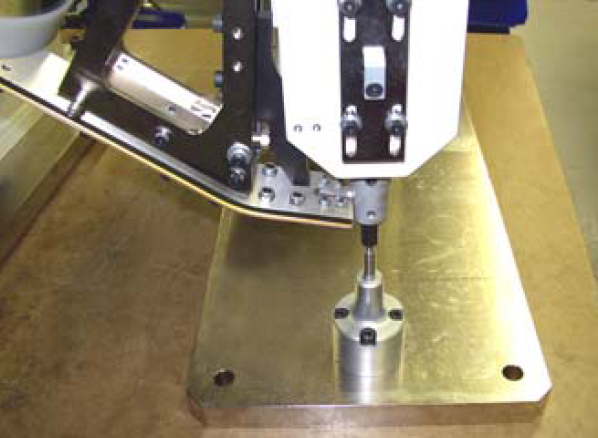

The catalog positions the 788 Bench Top Eyelet Inserter as a flexible, cost-effective platform for low-volume assembly. It is designed for bulk-fed eyelet insertion on printed circuit boards and can later be added to the PLT-902/901/501 XYR base platform when a line needs a more inline, higher-volume process.
| Machine Type | Semi-automatic bench top eyelet inserter |
|---|---|
| Insertion Rate | Up to 3,600 CPH |
| PCB Thickness Range | .010 - .250 |
| Board Receive Depth | 12 in |
| Cycle Actuation | Foot switch |
| Operation | Pneumatic |
| Feed System | Bulk component fed hopper with motor driven hopper track assembly |
| Electrical Requirement | 115 VAC, 60 Hz, 3 Amp |
| Pneumatic Requirement | 80 psi, 7.8 scfm |
| Eyelet Size Range | Available on request |
| Insert Hole Locating Beam | Optional |
| Inline Upgrade Path | Can be added to the PLT-902/901/501 XYR base platform machine |
Share your board thickness range, eyelet style, and expected throughput. UMG can review whether the 788 bench top platform or a future inline configuration is the better fit.
