Machine Platform
- Simple machine control
- Stainless steel vibratory bowl feeder
- Pin escapement singulator
- Insertion head, die, and lower anvil
- Modular tubular frame weldment

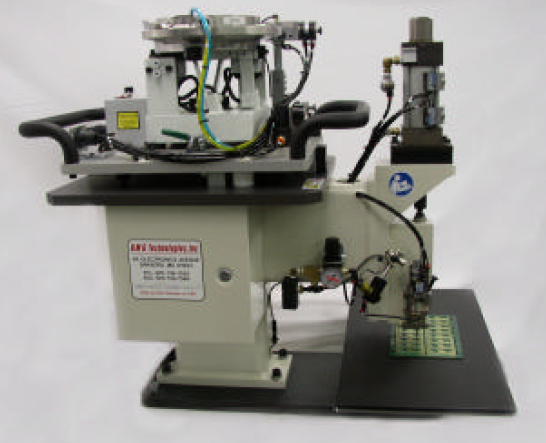

The MD-838 is a semi-automatic bench top bulk pin inserter built for medium-volume PCB assembly. It combines a vibratory bowl feed system, modular insertion head tooling, and straightforward operator controls in a compact platform that can later scale into a PLT-901-based inline process.
| Machine Type | Semi-automatic bulk pin bench top inserter |
|---|---|
| Production Fit | Medium-volume assembly |
| Insertion Rate | Up to 5,000 CPH |
| Feed System | Stainless steel vibratory bowl feeder with pin escapement singulator |
| Operation | Pneumatic |
| Cycle Actuation | Foot switch standard; two-hand actuated cycle optional |
| PCB Thickness Range | .030 - .130 in |
| Standard Factory Set-Up | .062 in |
| Board Receive Depth | 12 in |
| Electrical Requirement | 115 VAC, 50-60 Hz, 15 Amp |
| Pneumatic Requirement | 80 psi, 6.1 scfm |
| Locating & Safety | Insertion hole locating beam with ring guard obstruction interlock |
| Available Tooling | Over 100 modular connector tool sets available |
| Optional Features | Quick change feeder bay, European compliant power input, maple top bench with steel legs |
| Upgrade Path | MD-838 insertion head can be added to the PLT-902/901/501 XYR base platform for inline high-volume assembly |
| Custom Configuration | Contact UMG for application-specific customization |
Share your pin style, board thickness range, and throughput target. UMG can review whether the MD-838 bench top platform or a PLT-901-based inline configuration is the better fit.
