Continuous SMT terminal feeding for slip-fit pin in paste assembly
The SMR-60 is a continuous reel SMT terminal feeder built for high-volume slip-fit pin in paste assembly. The catalog positions it as a small-footprint, off-the-shelf feeder platform with intelligent interconnect feeding, continuous pin presentation, and broad in-process monitoring for reliable automated placement.
End of material detection and operator LED indicators
Monitoring & Production
Material present, component present, and pick-up in process monitoring
Part in tooling sensors and automatic material feed and present
Auto recovery and material replenishment
End of reel / tab material sensor
Process Innovation
Accurate pick-up / nozzle activated cycle
Plating aspirators at feed and shear points
Carrier strip payoff control with excise waste containment
Cam-driven material index, feed, and punch tooling
Controls & Software
Simple user presentation and pushbutton control panel
Cycle status indicators and user-friendly documentation
English, Spanish, and Mandarin interface
Omron PLC controller with Keyence sensors and amplifiers
Utilities & Protection
THK linear ways and SMC pneumatics
Placement pick-up sensing
Lock out tag out protection
110 VAC power input, 24VDC signal processing, and 90 psi / 5 scfm air input
Optional Features
Euro power and European conformity "CE"
Pin interconnect forming station and interleaf paper winder
Powered material payoff and scrap debris containment
Pitch progression verification and custom dereeler beyond 380 mm
Technical Specifications
Machine Type
Continuous reel SMT terminal feeder
Application
Slip-fit pin in paste assembly
Compatibility
MG-1 Flex Placer compatible
Feed Style
Standalone intelligent interconnect feeding
Placement Rate
Up to 4,000 CPH
Monitoring
100% material and nozzle pick-up monitoring
Power Input
110 VAC
Signal Processing
24VDC
Air Input
90 psi / 5 scfm
Languages
English, Spanish, and Mandarin
Controls
Omron PLC controller with Keyence sensors and amplifiers
Motion / Pneumatics
THK linear ways and SMC pneumatics

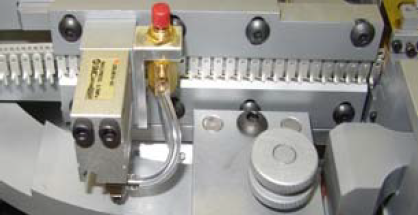

Photo & Video Gallery
Ready to discuss your application?
Share your terminal format, target placement rate, and feeder integration needs. UMG can review whether the SMR-60 fits your SMT interconnect feeding process.
