Basic Machine
- Intelligent machine control
- Two hand trip actuated insertion cycle
- Operator insertion light locator
- Pneumatic operation

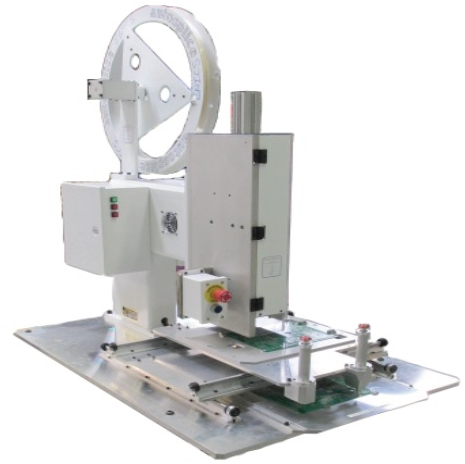

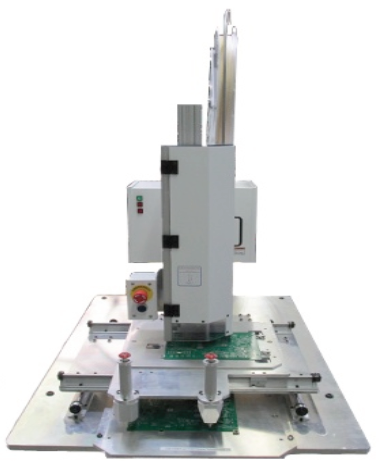

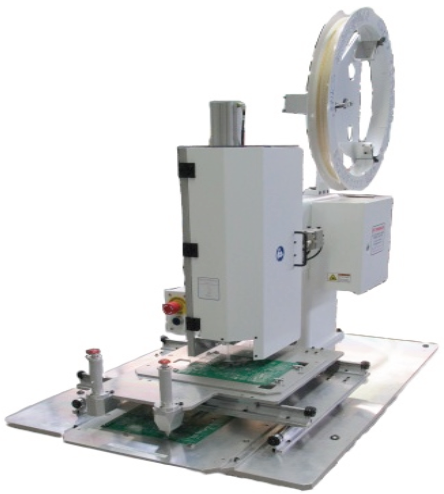

The brochure presents the BTI-425 as a semi-automatic two hand trip actuated terminal inserter designed to insert reeled tab connectors at a rate of up to 5,000 components per hour. The shown configuration combines intelligent machine control, pneumatic operation, and an XY manual alignment table for board positioning.
| Machine Type | Semi-automatic two hand trip actuated terminal inserter |
|---|---|
| Terminal Type | Reeled tab connectors |
| Operation | Pneumatic |
| Insertion Speed | Up to 5,000 CPH |
| Input Reel Max | 30 in |
| PCB Thickness Range | .030 - .120 |
| Standard Factory Set-Up | .062 |
| Board Receive Depth | 15 in |
| Power Input / I/O | 110 Volt input with 24 Volt I/O |
| Alignment Table | XY manual alignment table |
| Control Panel | Right-hand control panel |
| Languages | English, German, Spanish, Russian, and Czech |
| PLC Controller | Omron Sysmac PLC controller |
| Electrical Components | Omron power supply; Omron photomicro switches |
| Power Standard | IEC 950 compliant power input |
| European Input Option | Optional 200-240V European compliant power input |
| Pneumatic Package | SMC cylinders, solenoid valve stack, compressed air preparation unit complete with automatic drain regulator and gauge with 5 micron filter |
| Linear Ways | IKO linear ways |
| Optional Features | Scrap assist tube for female carrier; scrap cutter |
| Footprint | Available on request |
Share your reeled tab connector details, board thickness range, and board depth requirements. Our team can review whether the BTI-425 matches your process.
