Flexible bench top insertion for low-volume assembly

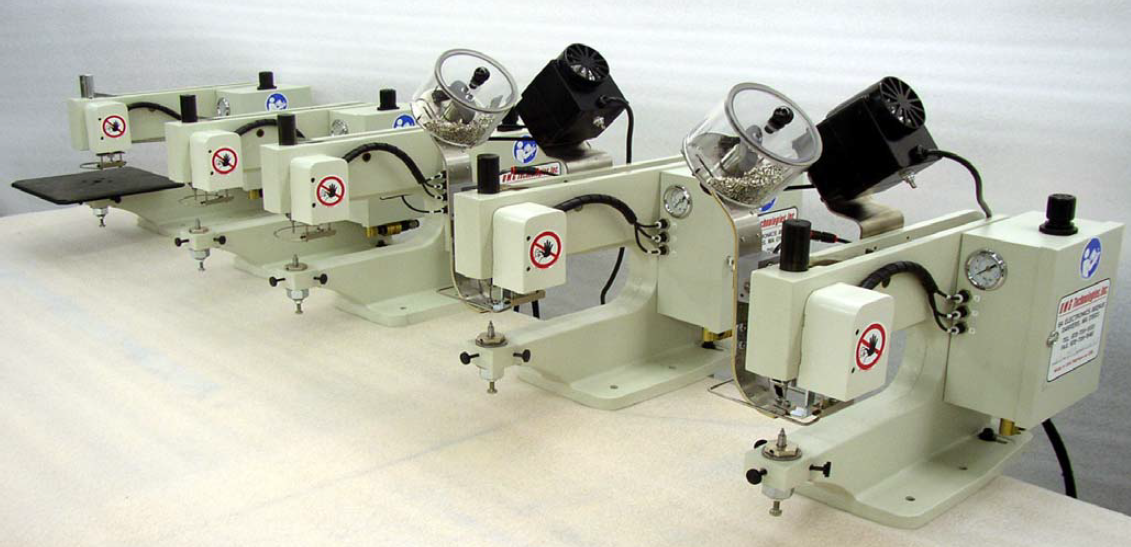

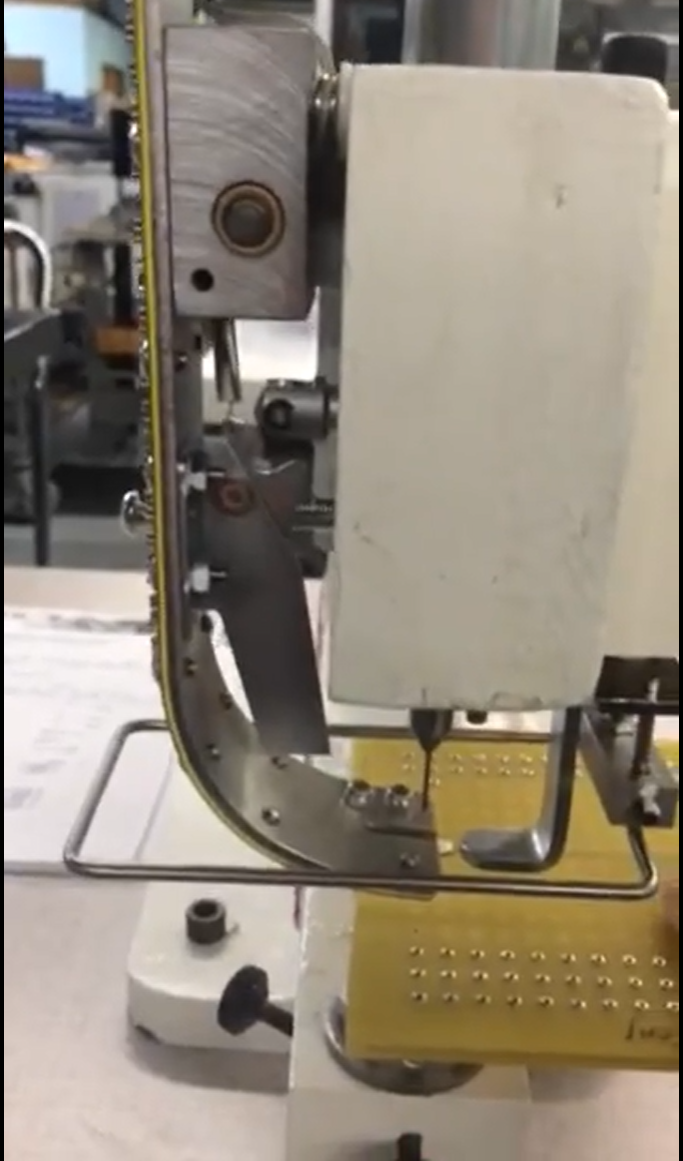

The AE2000 is a configurable air-operated bench insertion platform for printed circuit board assembly. It is designed to insert a variety of interconnects and small mechanical fasteners in low-volume production, with tooling adapted to the application rather than one single attachment style.
Insertion speed up to 2,000 components per hour
PCB thickness range: .010 - .250 in
10-inch depth to receive printed circuit boards
Pneumatic operation with pressure-sensitive compensation for substrate thickness tolerances
Supports terminals, pins, sockets, eyelets, rivets, standoffs, press-fit hardware, and other interconnects
Share your board thickness range, part family, and throughput target. UMG can review whether the AE2000 platform and its application tooling fit your insertion process.
